Improved support for uploading a vehicle import file

The CSV import has gotten an upgrade, and now handles diagnostics files, vehicle profiles, and labels. It's also more robust, and gives better error messages.

DLT tasks for strict resource groups

DLT tasks have now been expanded to work for strict resource groups. Additionally, when 'Use vehicle specific PINs' is checked in UDS mode it is now be possible to do a check to see if any PINs for the specified ECUs are missing in the portal. The 'Check PINs' feature is currently only available for resource groups. Read more about creating a DLT task here. Read more about uploading PINs here.

Compare WCU configurations

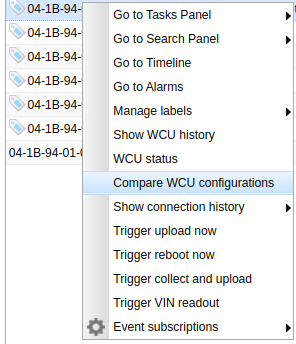

Compare WCU configurations from menu

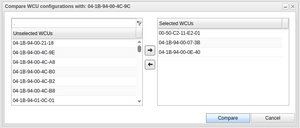

Compare WCU configurations selections

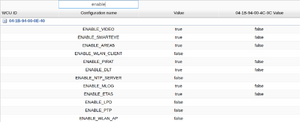

WCU configuration comparison results

A previous feature has been to compare a groups configuration with that of its resources. This has now been implemented for individual WCUs as well. Comparing individual WCU configurations is accessible via the right-click menu on a selected WCU in the vehicles tab. From there you open a dialog where you can select multiple other WCUs to compare against the current WCU. Pressing 'Compare' will then open a result panel displaying the differing configuration variables for each of the selected WCUs.

Improved WCU state change search in WCU history

It is now possible to search for state transitions in the WCU history panel. For example, searching for a transition from In Operation to Shelving in Progress will return all instances where this change occurred. Read more about it here.

New NO_SIGNAL operator for signal reader assignments

A new operator, NO_SIGNAL('Signal', 'Numeric Value'), is now available for signal reader trigger expressions. This expression is true if the specified signal has not appeared for at least the specified number of seconds.

Support to view the history of how an assignment has evolved

Support for viewing historical versions has been added to the Assignment Editor for Signal Reader, IDC, and Area5 assignments. When an assignment is open, simply click the new History button to access a list of its saved versions. This list includes the name, date, and editor for each version. You can even click on any of the entries to view the assignment as it existed at that specific point in time. Read more here.

Support for saving a historical assignment

You can now save historical or read-only assignments as a new version. This feature allows you to use a previous assignment as a template, even if you don't have editing permissions for the original. When you Save As, you can give the assignment a new name, and you'll be set as the creator, with full editing permissions for your new copy.

Possible to delete multiple assignments

You can now select multiple lines in the assignment editor and delete them at once. Simply highlight the lines you want to remove and press the delete button.
